ATTEND M.2 Connector

Page info

Writer 관리자
Comment 0 조회 719회 Date 21-02-18 14:19

Article

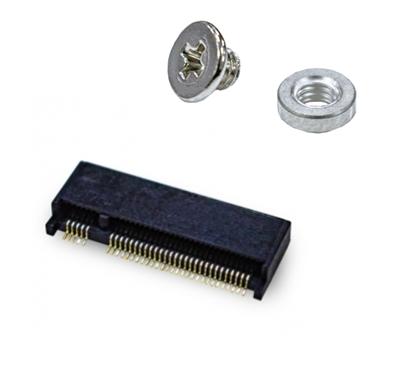

M.2 connector, also known as the Next Generation Form Factor (NGFF) is originally designed for the ultra-thin products. Its compact size could save over 20% of PCB design space compare with mini PCIe connector. M.2 connector applies to high-speed data transmission that supports PCI Express 3.0, SATA 3.0 and USB 3.0.

첨부파일

M.2 edm-01.pdf (3.2M)
28Download | DATE : 2021-02-18 14:23:02
123A-30B00.pdf (351.3K)
28Download | DATE : 2021-02-18 14:43:34
